Shiitake Mushroom Cultivation Container High-Yield

1. Product Overview

Shiitake fruiting depends on cold-shock and light stimulation, and how evenly the substrate logs are lit directly determines cap colour and grading. This model combines programmable temperature-differential curves, directional inter-tier lighting and pull-out racks so that every log receives identical fruiting conditions.

 2. Key Advantages

• Programmable cold-shock curves that promote even primordia induction

• Directional inter-tier lighting for uniform log exposure and consistent cap colour

• High-density pull-out racks giving a high load per unit area and easy batch handling

• Fresh-air and exhaust interlocks that clear the high CO2 peaks of peak fruiting

 3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M4C

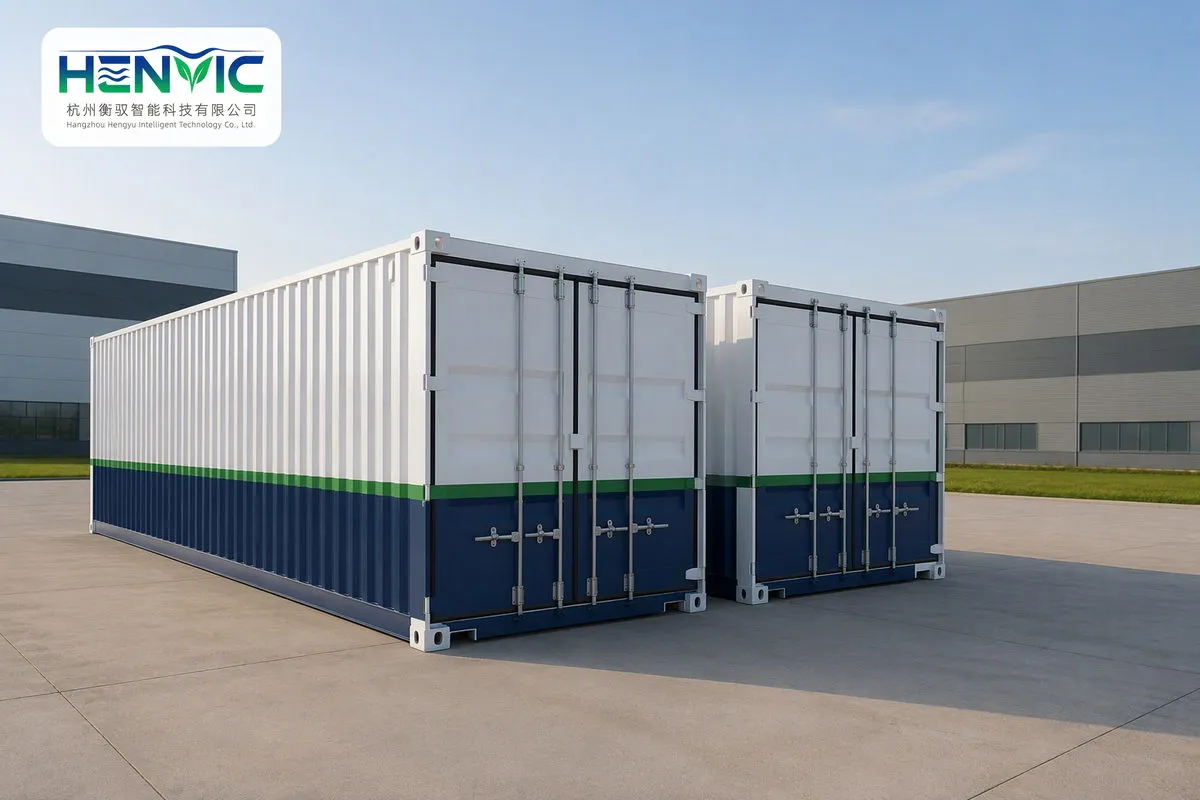

外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	60–80 m²  /  60-80 m2
层架配置 / Rack configuration	5–6 层高密度出菇架，配分区送风  /  5-6 tier high-density racks with zoned air distribution
温度控制范围 / Temperature range	12-22 ℃ (±0.5 ℃)  /  12-22 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-92% RH
CO₂ 浓度 / CO₂ concentration	800-1500 ppm
光照 / Lighting	0-800 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	30–45 天（出菇期）  /  30-45 days for the fruiting stage
装机功率 / Installed power	15–20 kW  /  15-20 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.35 W/(m²·K)  /  <= 0.35 W/(m2.K)
控制系统 / Control system	PLC + 触摸屏 + 远程监控 + 多气候分区独立控制  /  PLC, touch panel, remote monitoring and independent multi-zone climate control
主栽品种 / Primary species	香菇（Lentinula edodes）  /  Shiitake Mushroom (Lentinula edodes)



 4. System Configuration

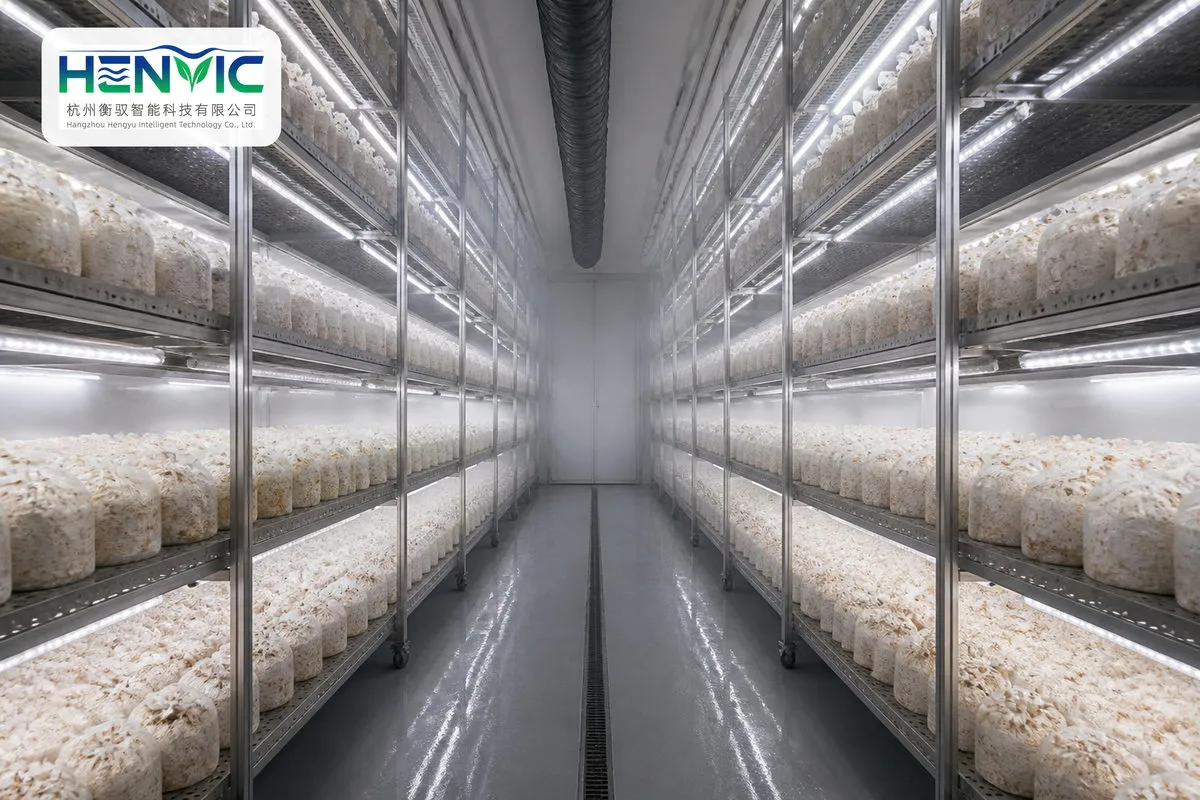

Standard configuration: Mesh-type pull-out log racks, inverter refrigeration unit, fogging humidifier with floor wet-film, dimmable LED bars, interlocked fresh-air and exhaust fans, ozone and UV disinfection interfaces, and an intelligent control cabinet.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 5-6 tier high-density racks with zoned air distribution; control: PLC, touch panel, remote monitoring and independent multi-zone climate control.

5. Suitable Species

主栽品种：香菇（Lentinula edodes）。栽培方式：合成菌棒（袋料）。建议配套菌棒转色区，转色完成的菌棒再入箱出菇可获得更整齐的批次。

English

Primary species: Shiitake Mushroom (Lentinula edodes). Cultivation method: synthetic substrate logs (bag culture). We recommend a companion colouring (browning) area; logs that finish colouring before entering the container yield more uniform batches.

 6. Application Scenarios

Year-round shiitake production bases, grow-rooms attached to substrate-log factories, and rural revitalisation industry projects. This is the High-Yield configuration; Highest output per unit area; built for steady, large-volume production.

 7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 72-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
