Farm Mushroom Cultivation Chamber

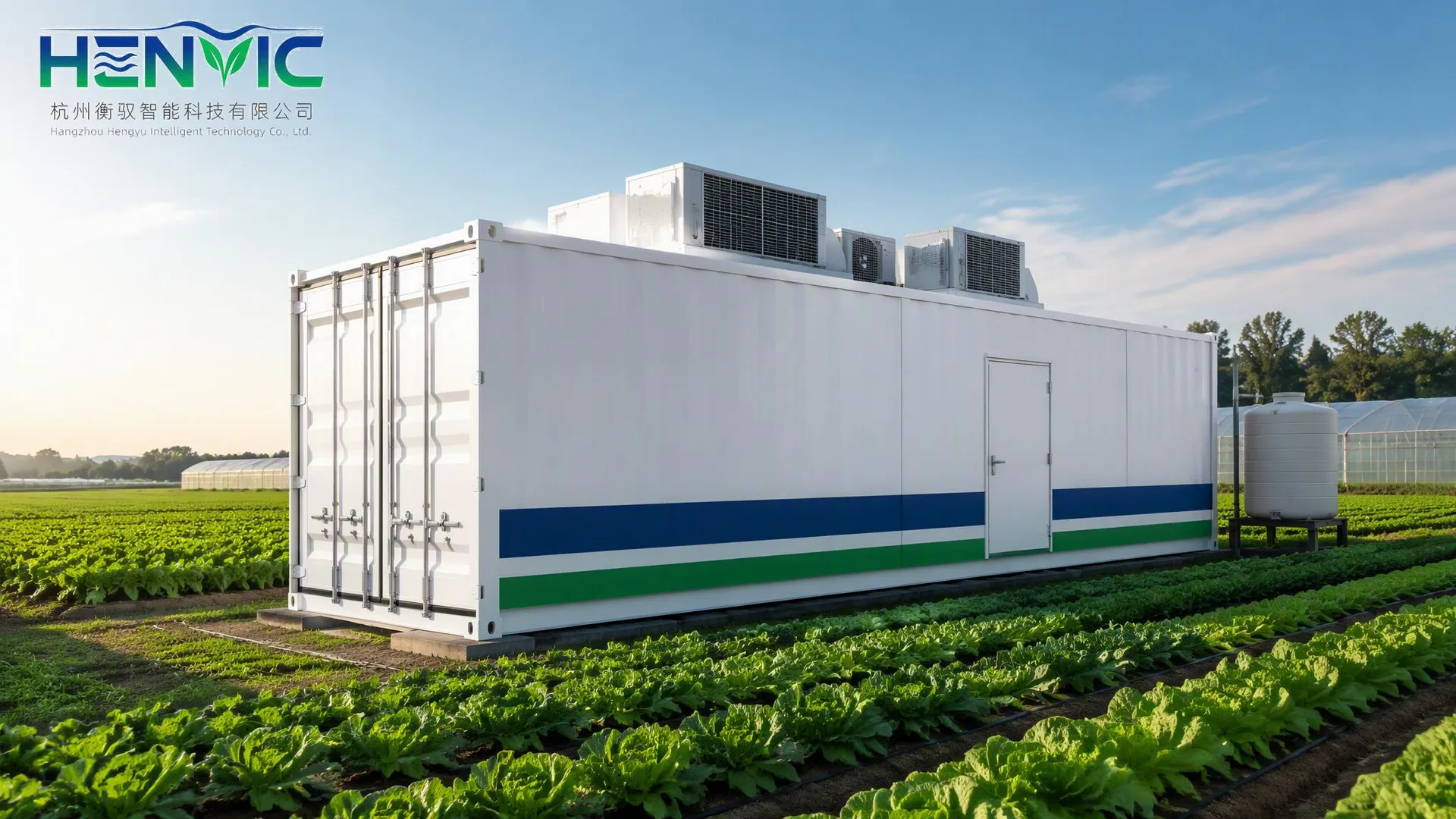

Figure 1 — Exterior Panoramic View
Fully stainless steel modular cabin featuring an industrial-grade refrigeration unit and ventilation ducts on the top, along with an intelligent control cabinet and an emergency stop button on the sides. Durable and robust, suitable for a variety of outdoor and indoor installation environments.

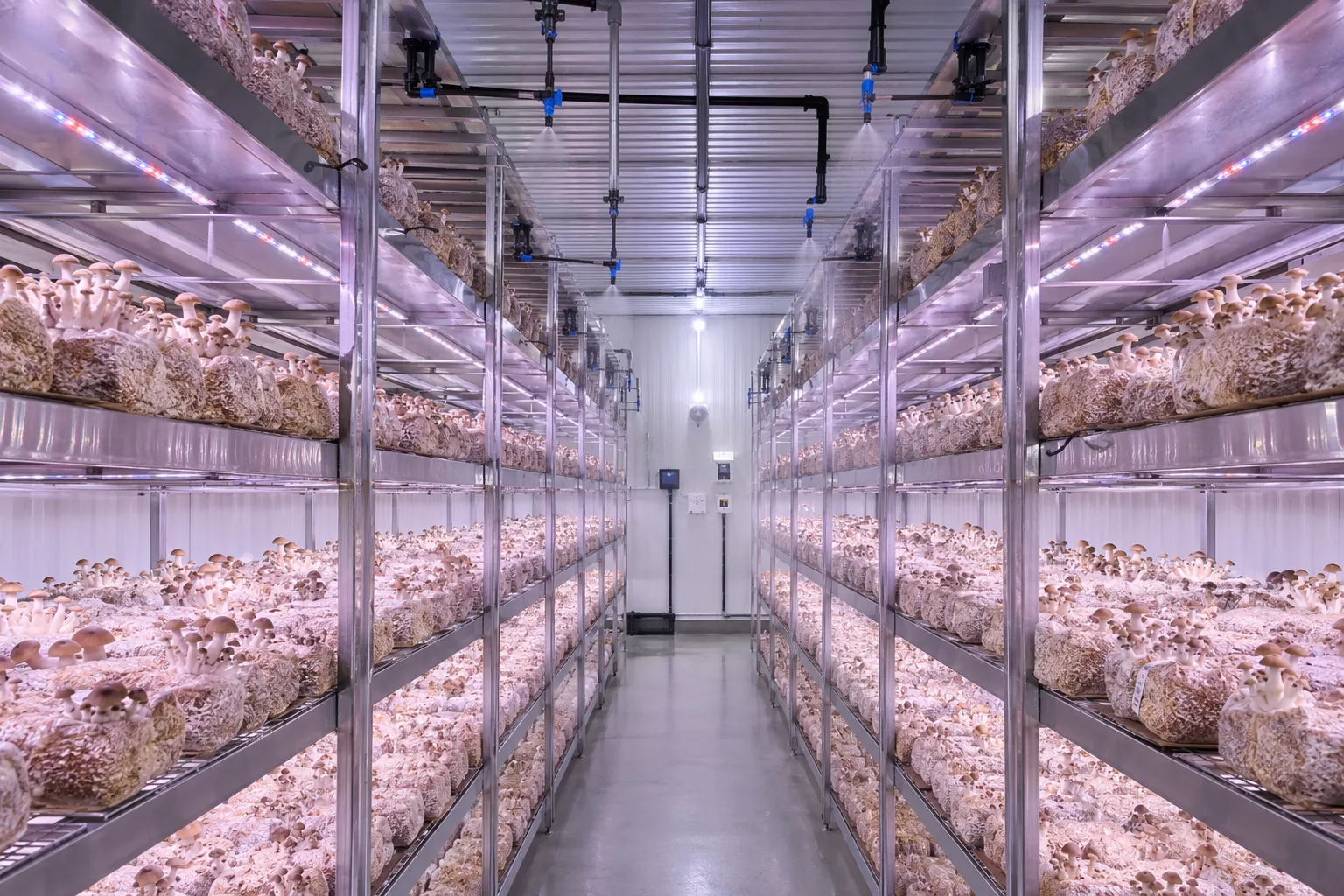

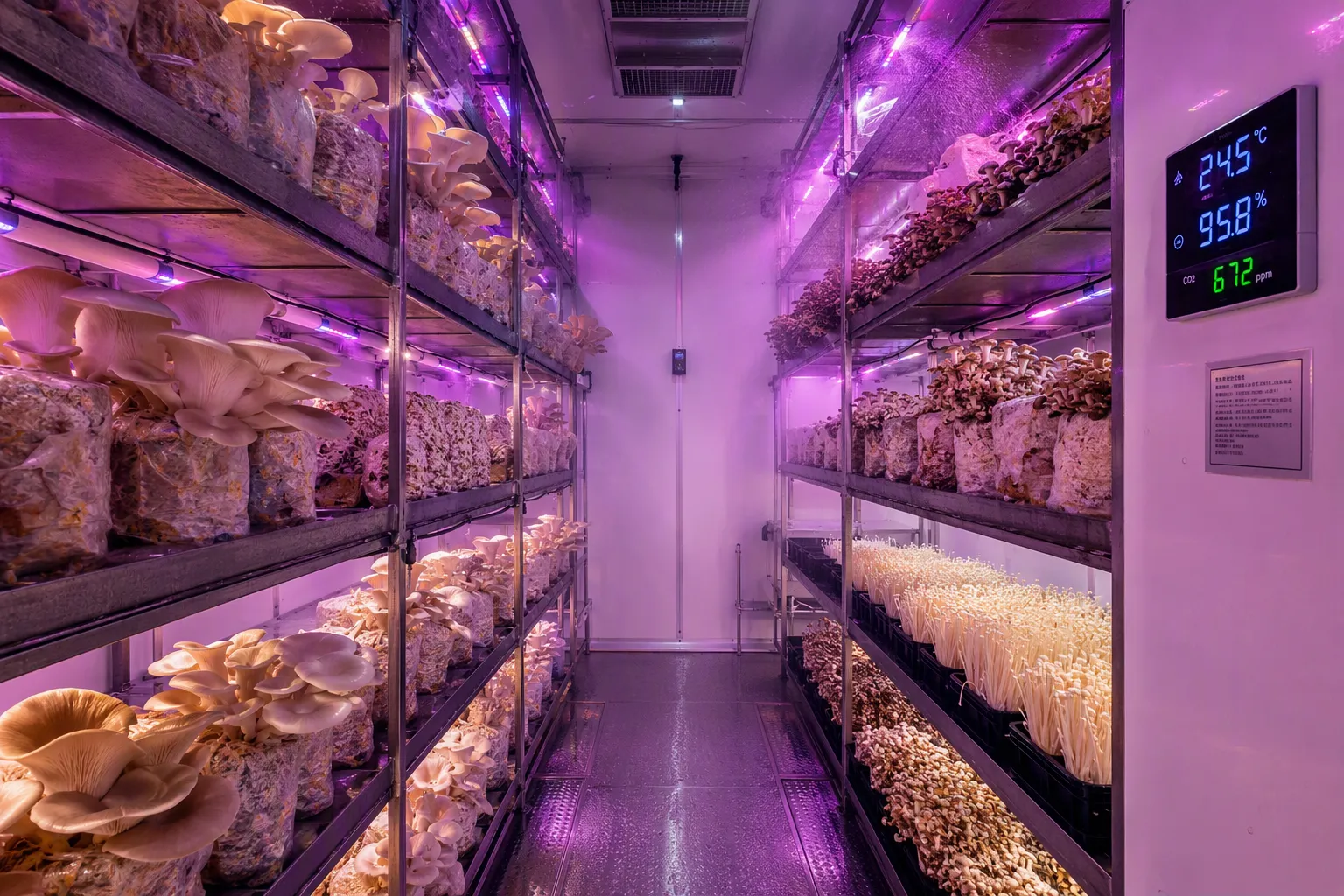

Figure 2 — Internal Cultivation Area
The multi-tiered metal shelving unit is neatly arranged, with each tier equipped with professional LED plant supplemental lighting fixtures. The automatic atomization humidification system evenly distributes moisture through pipelines and nozzles, ensuring consistent temperature and humidity levels throughout the storage area. The epoxy self-leveling floor surface facilitates easy cleaning and disinfection.

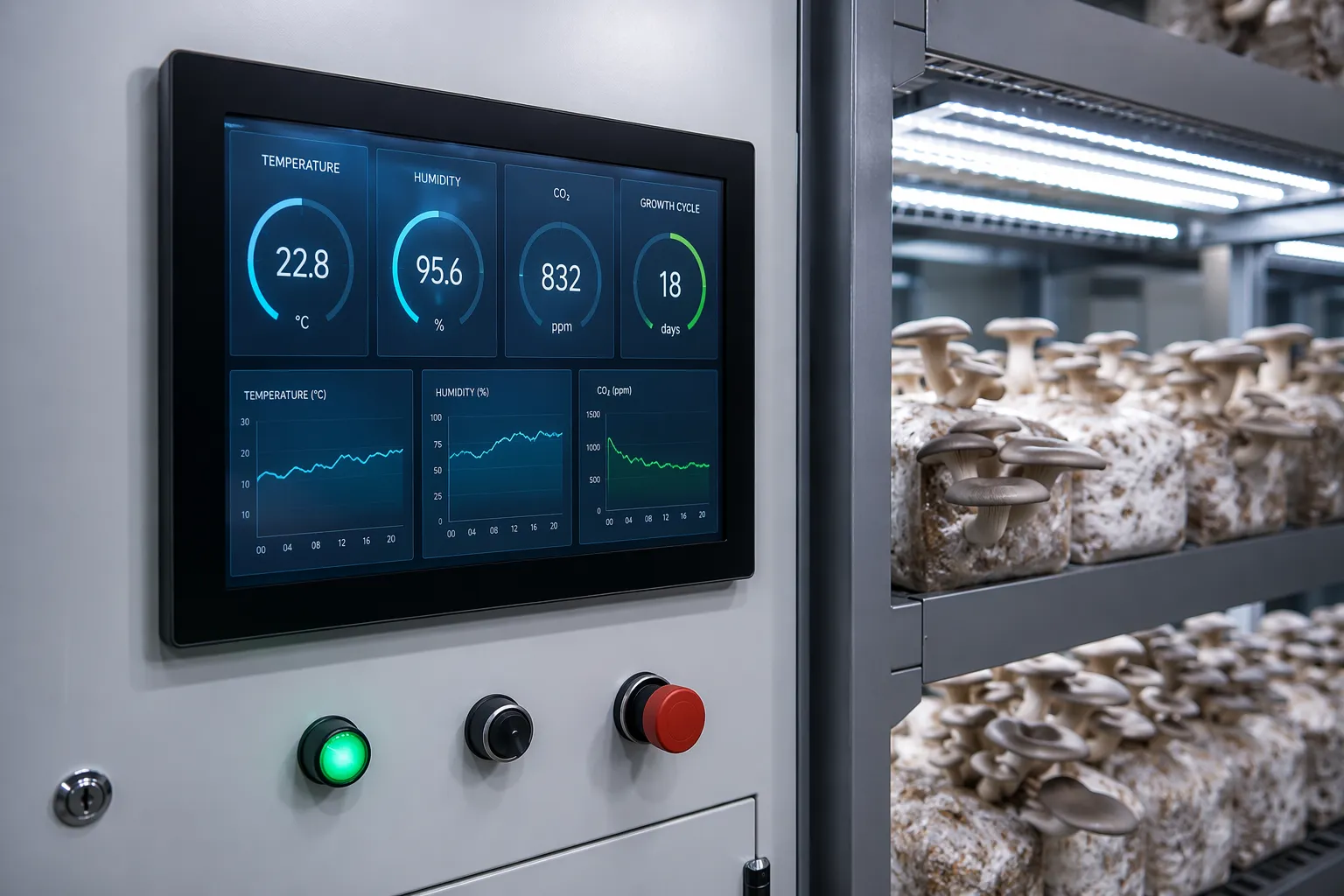

Figure 3 — Intelligent Control System
The touchscreen terminal displays real-time key data such as temperature, humidity, CO₂ concentration, and growth cycle; it supports viewing historical trend curves, receiving abnormality alarm notifications, and remote management via a mobile app.
III. Core Technical Specifications
Parameter Term | Specifications & Performance Parameters |
Enclosure material | 304 stainless steel + polyurethane insulation layer |
External dimensions (Standard) | 6000 mm × 3000 mm × 2800 mm (customizable) |
temperature control | 10°C – 30°C（±0.5°C） |
moisture control | 60% – 98% RH（±3%） |
CO₂control | 400 – 5000 ppm |
Lighting System | Full-spectrum LED – dimmable and programmable |
ventilation system | Recirculating fan + fresh air supply – variable frequency drive (VFD) speed control |
Humidification System | High-pressure micro-nebulization – atomization particle size ≤ 10 μm |
control method | PLC + 10-inch touchscreen |
telemanagement | Wi-Fi / 4G, Mobile App & Web |
source | 380V / 50Hz Three-phase Five-wire |
power | 8 – 15 kW |
Cultivation rack number of layers | 4–6 layer |
Single-warehouse菌包容量 | 5000 – 8000 packs |
Environmental tolerance | -10°C – 45°C |
IV. Core Functional Advantages
Precision Environmental Control
High-precision sensor combined with a PID algorithm ensures temperature fluctuations are controlled within ±0.5°C and humidity fluctuations within ±3%. Real-time CO₂ monitoring and automatic fresh air supply, along with independent multi-zone control, accommodate different microbial species.
Smart Lighting
Full-spectrum LED plant growth lamp with adjustable blue/red/white light ratios; each layer can be controlled independently, allowing for the programmable simulation of natural circadian rhythms.
Automatic atomization humidification
The high-pressure micro-nebulization system provides uniform coverage and features timed, dosed, multi-mode programming, ensuring the high-humidity environment required for the development of mushroom fruiting bodies.
Remote Management Platform
Real-time data viewing and historical trend analysis via mobile app or web interface; instant anomaly alert notifications; supports centralized management of multiple warehouses.
building block design
The standard mobile cabin is plug-and-play, supports flexible expansion via multiple parallel warehouses, and enables rapid deployment.
Health and Safety
304 stainless steel inner wall + epoxy flooring + UV sterilization lamp (optional) + positive-pressure filtration – ensuring comprehensive cleanliness throughout the entire process.
V. Product Model
model | Dimensions (L×W×H) | Number of layers | B菌包容量 | suit |
HVC-M3000 | 3000×2400×2600mm | 4 layer | ~3000 packs | Small household/Experimental Station |
HVC-M6000 | 6000×3000×2800mm | 5 layer | ~6000 packs | Medium-sized farm |
HVC-M9000 | 9000×3000×2800mm | 5 layer | ~9,000 packs | Large-scale base |
HVC-M12000 | 12000×3000×3000mm | 6 layer | ~12,000 packs | Industrial-scale production |
custom made | Custom dimensions | custom made | custom made | Special Requirements |
VI. Applicable菌种
culture | thermophilic | period | Recommended Configuration |
pleurotus eryngii | 14–18°C | 18–22 days | Standard + Blu-ray |
xianggu | 18–24°C | 15–20 days | standard |
Enoki mushrooms | 8–12°C | 25–30 days | Enhanced cooling |
Oyster mushroom | 20–28°C | 12–18 days | standard |
Agaricus bisporus | 16–20°C | 18–25 days | Standard + Topsoil Layer |
VII. Application Scenarios
Large-scale edible mushroom cultivation base · Modern agricultural industrial park · Rural revitalization mushroom-based poverty alleviation workshop · Research institute-led variety breeding program · Export-oriented GAP/organic certified cultivation
VIII. Service and Support
● Free site survey and schematic design
● Professional engineers will perform on-site installation and complete system commissioning within 72 hours.
● Mushroom Cultivation Technology Training + SOP Manual
● Full device comes with a 2-year warranty, lifetime technical support, and 24/7 response service.
● Common accessories available in stock – urgent delivery within 48 hours!
IX. Company Profile
Hangzhou Henvic Intelligent Technology Co., Ltd. specializes in the research, development, and manufacturing of intelligent agricultural equipment. Its core team possesses extensive experience in industrial automation and facility agriculture, providing comprehensive, factory-scale intelligent solutions for the global edible fungi industry.
official website
● :
www.henvic.net
major business
● Smart Mushroom Cultivation Pod · Container-Based Plant Factory · Agricultural IoT
